Bias-T

Ace Technologies’s Bias-T products enable system’s components to interchange data by either integrating or separating RF and DC signals and protect systems by blocking electrical surge from reaching DUIT.

    • -

      Wide band coverage

    • -

      Low cost

    • -

      Low PIM

    • -

      AISG support

    • -

      VSWR meter support

    • -

      Communication function

    • -

      Low I/L

    • -

      High power
    •
    • DC block
    • Ace Technologies’s DC block products minimize DC insulation between RBS and antennas in accordance with RF characteristics and are optimized for uses in broad base stations and in a variety of frequencies accompanied with indoors and outside applications.
    •

Bias-T

복수의 서비스를 위한 site 구축 시 에이스테크놀로지의 Combiner/Diplexer은 성능 저하 없이 Feeder Cable을 최소화할 수 있도록 도와줍니다.



























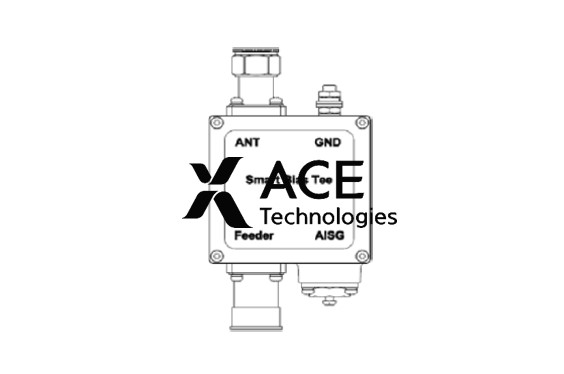

  • SBT(690-2700MHz)-R-PM

    Model Number

    79020202

    		 79021202 79022202 79020212 79021212 79020203 79021203 79022203 79020213 79021213
    Type +8 to +30 VDC/BTS +8 to +30 VDC/ANTENNA

    Frequency Range

    690-2700 MHz

    		 690-2700 MHz

    Connector Type

    7/16-DIN
    Long Neck

    		 4.3/10
    Long Neck    		 N Type
    Long Neck    		 7/16-DIN
    Long Neck    		 4.3/10
    Long Neck    		 7/16-DIN
    Long Neck    		 4.3/10
    Long Neck    		 4.3/10
    Long Neck    		 7/16-DIN
    Long Neck    		 4.3/10
    Long Neck

    Connectors

    		 Antenna

    -

    		 Male
    BTS Male -
    Feeder Female Male Female MaleMale
    AISG 8-pin Male 8-pin Male



    Frequency Range

    690-2700

    Insertion Loss    Port 1 -- Port 2 (690-2700 MHz)

    < 0.1

    Isolation for DC and RCU Signals

    		 Port 1 -- Port 2

    > 70
    Port 1 -- Port AISG > 70
    VSWR < 1.15
    Impedance 50
    Input Power Port 1 (690-2700 MHz) < 500
    Port 2 (690-2700 MHz) < 500
    AISG Port < 2.5 / +8 to +30 VDC

    Power Consumption (typical)

    0.6
    Lightning Protection (8/20 μs) 10
    Intermodulation (3rd Order; 2x43 dBm) < -117
    Modem Carrier Frequency 2.176
    Connectors See Ordering Options & Overview
    Ingress Protection IP67
    Application Indoor/Outdoor
    Operating Temperature -40 to +70 (-40 to +158)
    Dimensions without Connectors (W x H x D) 75 x 160 x 45
    Weight 0.75

    Download Specifications

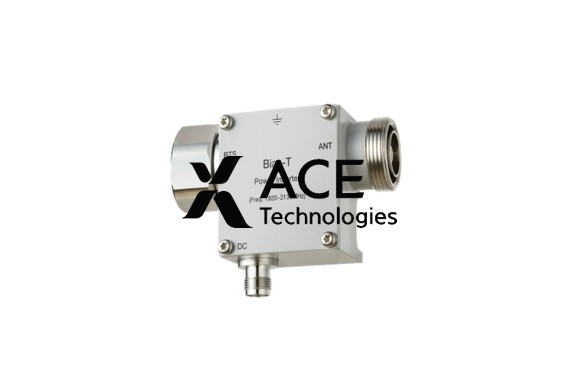

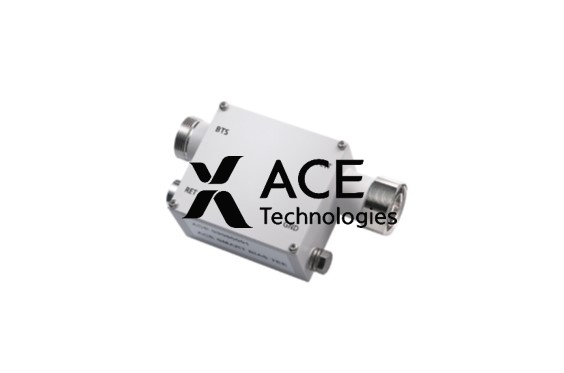

  • Smart Bias-T

    • Frequency(operation) : 698~2690MHz
    • I/L : 0.2 dB
    • Connector type : 7/16
    • Control function : OOK, FSK communication
    • Power(avr./peak) : 500W/ 5000W
    • 3rd PIM(2*43dBm) : -116dBm

    Download Specifications

  • Bias-T with AISG + VSWR meter

    • Frequency(operation) : 800~900MHz / 1800~1900MHz / 2100MHz
    • I/L : 0.2~0.3dB
    • Connector type : 7/16
    • VSWR monitoring : 7dB±2
    • Power(avr./peak) : 280W/ 1680W
    • 3rd PIM(2*43dBm) : -116dBm

  • Bias-T with AISG

    • Frequency(operation) : 800~900MHz / 1800~1900MHz / 2100MHz / 2700MHz
    • I/L : 0.2~0.3dB
    • Connector type : 7/16
    • Power(avr./peak) : 280W / 1680W
    • 3rd PIM(2*43dBm) : -116dBm
